Stripe Payment Links & Checkout Flow

​

Overview

​

Key Features

• Secure Checkout: Hosted by Stripe with PCI compliance
• Multiple Payment Methods: Cards, bank transfers, digital wallets
• Mobile Optimized: Responsive checkout experience
• Real-time Updates: Webhook-driven status updates
• Invoice Integration: Automatic invoice reconciliation
• Card Saving: Optional card storage for future payments

​

Payment Link Lifecycle

​

Payment Status Flow

​

Status Transitions

INITIATED → PENDING → SUCCEEDED
    ↓           ↓          ↓
  FAILED     FAILED    REFUNDED

​

Status Definitions

​

Creating Payment Links

​

Prerequisites

1. Stripe Connection: Active Stripe connection configured
2. Customer Sync: Customer must have Stripe customer ID
3. Invoice Status: Invoice must be finalized and unpaid
4. Valid Amount: Payment amount must match invoice outstanding

​

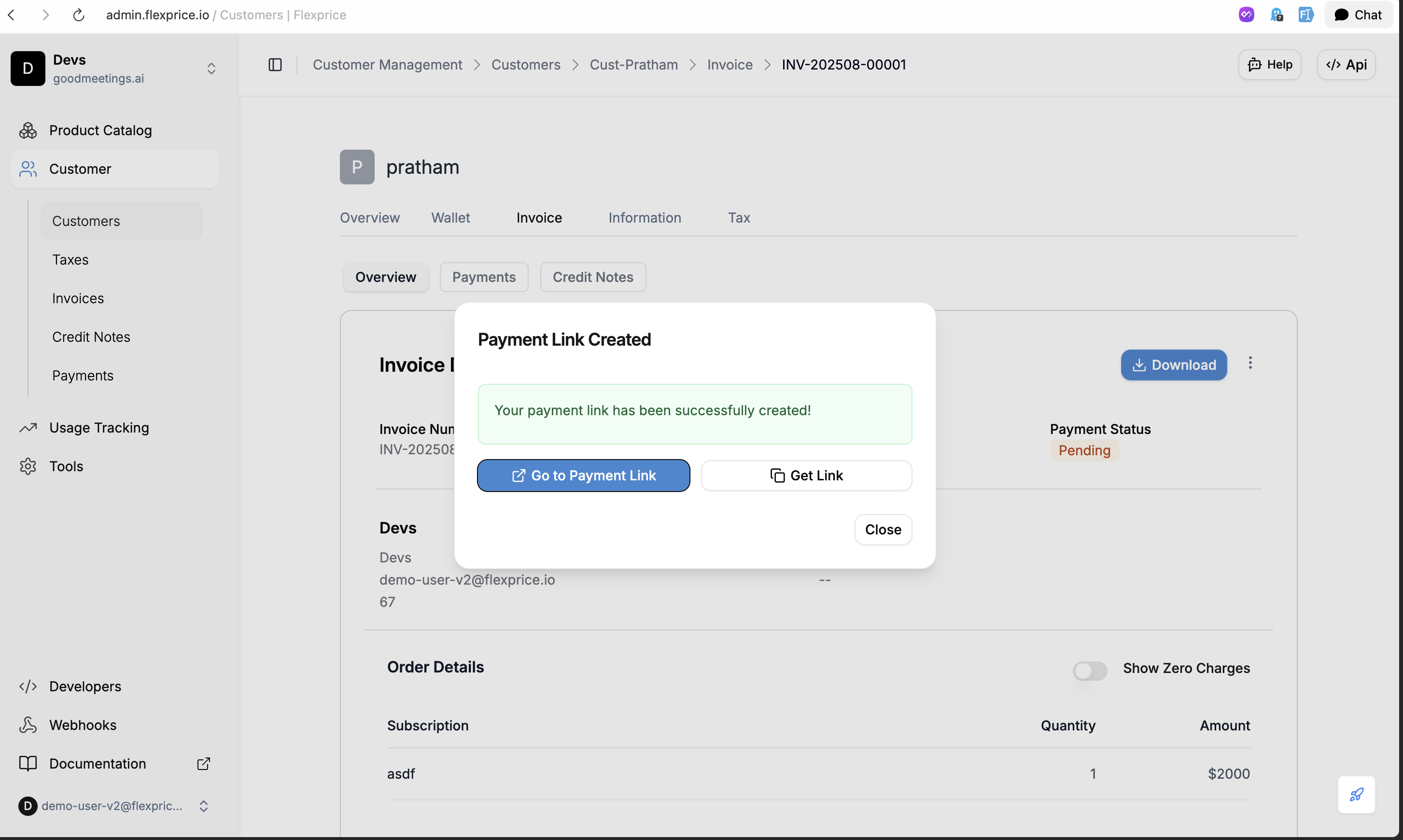

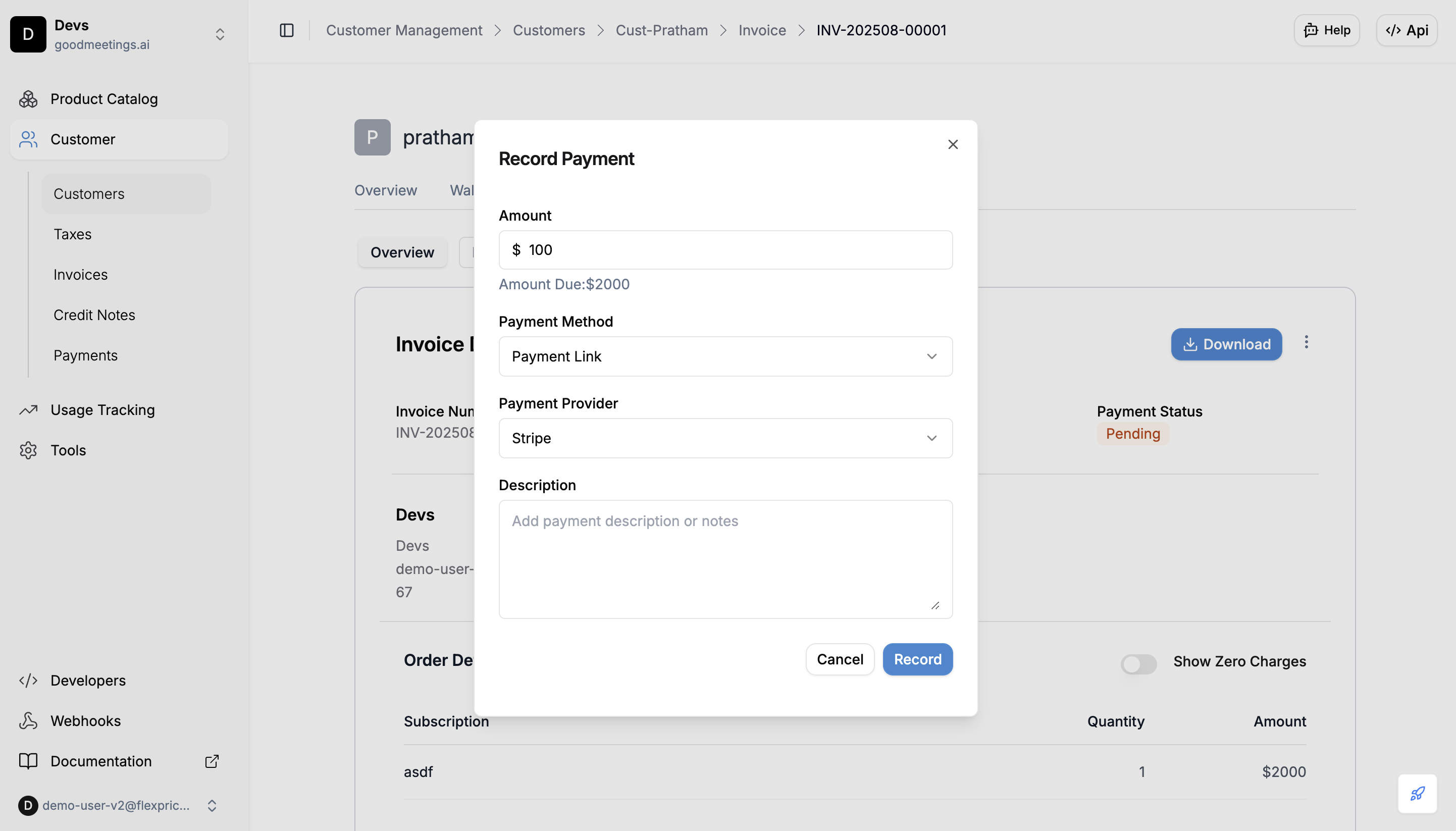

Creating Payment Links via Dashboard

​

API Request

Content-Type: application/json
Authorization: Bearer your_api_key
X-Environment-ID: your_environment_id

{
    "amount": 10,
    "currency": "usd",
    "destination_id": "inv_01K34HYZN03V6X8Q6V3T8X6G4F",
    "destination_type": "INVOICE",
    "payment_method_type": "PAYMENT_LINK",
    "process_payment": true,
    "payment_gateway": "stripe",
    "success_url": "https://admin-dev.flexprice.io/customer-management/invoices/inv_01K34HYZN03V6X8Q6V3T8X6G4F?page=1",
    "cancel_url": "https://admin-dev.flexprice.io/customer-management/invoices/inv_01K34HYZN03V6X8Q6V3T8X6G4F?page=1",
    "save_card_and_make_default": true
}

{
    "amount": 10,
    "currency": "usd",
    "destination_id": "inv_01K34HYZN03V6X8Q6V3T8X6G4F",
    "destination_type": "INVOICE",
    "payment_method_type": "PAYMENT_LINK",
    "process_payment": true,
    "payment_gateway": "stripe",
    "success_url": "https://admin-dev.flexprice.io/customer-management/invoices/inv_01K34HYZN03V6X8Q6V3T8X6G4F?page=1",
    "cancel_url": "https://admin-dev.flexprice.io/customer-management/invoices/inv_01K34HYZN03V6X8Q6V3T8X6G4F?page=1"
}

​

Response

{
  "id": "pay_1234567890abcdef",
  "payment_status": "pending",
  "payment_url": "https://checkout.stripe.com/c/pay/cs_test_...",
  "amount": "150.00",
  "currency": "usd",
  "gateway_tracking_id": "cs_test_1234567890abcdef",
  "created_at": "2024-01-20T10:30:00Z",
  "metadata": {
    "stripe_session_id": "cs_test_1234567890abcdef"
  }
}

​

Payment Link Configuration

​

Required Fields

​

Stripe Checkout Configuration

​

Default Checkout Settings

• Payment Methods: Cards, bank transfers, digital wallets
• Currency: Matches the payment currency
• Amount: Exact payment amount
• Customer: Pre-filled with customer data
• Invoice Details: Line items from the invoice

​

Card Saving Configuration

• Setup Future Usage: Stripe session configured with setup_future_usage: "off_session"
• Card Storage: Payment method automatically saved to customer
• Default Assignment: Saved card becomes the customer’s default payment method
• Future Payments: Enables subsequent card payments without re-entering details

• Card saving requires customer consent and should comply with local regulations
• Saved cards can be used for future CARD payment method type payments
• Only one default payment method per customer is supported

​

Webhook Processing

​

Payment Completion Webhook

{
  "id": "evt_1234567890abcdef",
  "type": "checkout.session.completed",
  "data": {
    "object": {
      "id": "cs_test_1234567890abcdef",
      "payment_status": "paid",
      "amount_total": 15000,
      "currency": "usd",
      "customer": "cus_stripe123abc",
      "metadata": {
        "flexprice_payment_id": "pay_1234567890abcdef"
      }
    }
  }
}

​

Webhook Processing Flow

1. Receive Webhook: Flexprice receives the webhook from Stripe
2. Verify Signature: Validate webhook signature for security
3. Find Payment: Locate payment record using session ID
4. Check Card Saving: Read save_card_and_make_default from payment metadata
5. Set Default Card: If flag is true, set payment method as default in Stripe
6. Update Status: Change payment status to SUCCEEDED
7. Reconcile Invoice: Update invoice payment status and amounts
8. Trigger Events: Send payment completion events

​

Error Handling

​

Common Payment Errors

​

Payment Failure Handling

1. Webhook Received: Stripe sends failure webhook
2. Status Updated: Payment status changed to FAILED
3. Error Logged: Failure reason recorded
4. Customer Notified: Optional failure notification
5. Retry Available: Customer can create new payment link

​

Testing Payment Links

​

Test Environment Setup

1. Use Test Keys: Configure Stripe test mode
2. Test Cards: Use Stripe’s test card numbers
3. Test Webhooks: Use ngrok for local webhook testing

​

Test Card Numbers

​

Testing Flow

1. Create Test Payment: Use test invoice and customer
2. Generate Payment Link: Create payment with test data
3. Complete Payment: Use test card in Stripe checkout
4. Verify Webhook: Check webhook processing
5. Confirm Status: Verify payment and invoice updates

​

Relationship with Card Payments

​

Enabling Future Card Payments

1. First Payment: Customer uses payment link to pay and save card
2. Card Storage: Payment method saved and set as default in Stripe
3. Future Payments: Customer can use CARD payment method type
4. Seamless Experience: No redirect required for subsequent payments

​

Payment Method Hierarchy

​

Integration Strategy

1. New Customers: Always use payment links for first payment
2. Set Save Flag: Include save_card_and_make_default: true for returning customers
3. Future Payments: Use card payment method for faster checkout
4. Fallback: Provide payment link option if card payment fails

​

Security Considerations

​

Payment Link Security

• HTTPS Required: All payment links use HTTPS
• Session Expiry: Links expire after 24 hours
• One-time Use: Each link can only be used once
• Signature Verification: All webhooks verified

​

Data Protection

• PCI Compliance: Stripe handles sensitive payment data
• No Card Storage: Card details never stored in Flexprice
• Encrypted Storage: All payment data encrypted at rest
• Access Controls: Role-based access to payment data

​

Webhook Endpoints

• POST /api/v1/webhooks/stripe/{tenant_id}/{environment_id} - Stripe webhook handler
