Step-by-Step Setup when creating a MAX-based metered feature:
  1. Navigate to Features
    • Go to Product Catalog → Features
    • Click “Add Feature”
  2. Basic Information
    • Name: “Peak Concurrent Users” (or descriptive name)
    • Type: Select “Metered”
  3. Event Configuration
    • Event Name: concurrent.users (must match your event data)
    • Aggregation Function: Max
    • Aggregation Field: user_count (the property to find maximum for)
    • Bucket Size: Optional - Leave empty for standard MAX, or select (HOUR, DAY, etc.) for bucketed MAX
    • Group By: Optional - Only used with bucketed MAX. When Bucket Size is set, specify a single property name (e.g. resource_id) to compute MAX per group within each time bucket, then sum (per bucket and across buckets)
  4. Usage Settings
    • Usage Reset: Periodic (for peak tracking per period)
    • Unit Name: user / users
  5. Save Feature

​
MAX - Modes

MAX aggregation can operate in two modes depending on whether bucket_size is specified. group_by is only applied when using bucketed MAX (i.e. when bucket_size is set).

​
Mode 1: Standard MAX (Non-Bucketed)

When: bucket_size is NOT specified (group_by is not used)
Returns: Overall maximum value across all events
Use for: Simple peak detection

​
Mode 2: Bucketed MAX (Windowed)

When: bucket_size IS specified
Returns: Sum of maximum values from each time bucket (see formula below)
Use for: Cumulative peak billing, tiered capacity models Optional: Bucketed MAX with group_by
When Group By is also set (a single property name string), within each time bucket events are grouped by that property. For each bucket: MAX is computed per group, then those group maximums are summed. The final result is the sum of these per-bucket totals. Use this for per-resource or per-entity peak billing within time windows (e.g. per resource, per project, per region). group_by has no effect without bucket_size.

​
Calculation Examples

​
Standard MAX Example

​
Event Data

[
  {
    "event_id": "evt_001",
    "event_name": "concurrent.users",
    "external_customer_id": "customer_123",
    "timestamp": "2024-01-15T10:00:00Z",
    "properties": {
      "user_count": 25
    }
  },
  {
    "event_id": "evt_002",
    "event_name": "concurrent.users",
    "external_customer_id": "customer_123",
    "timestamp": "2024-01-15T11:30:00Z",
    "properties": {
      "user_count": 40
    }
  },
  {
    "event_id": "evt_003",
    "event_name": "concurrent.users",
    "external_customer_id": "customer_123",
    "timestamp": "2024-01-15T14:00:00Z",
    "properties": {
      "user_count": 35
    }
  }
]

​
Standard MAX Calculation

Process: Find the highest value across all events
Result: 40 users (maximum from all events)

​
Bucketed MAX Example

​
Configuration

  • Bucket Size: HOUR
  • Slab Pricing:
    • 0-5 GB: 0 Rs (free tier)
    • 5-10 GB: 2 Rs per GB
    • 10+ GB: 3 Rs per GB

​
Event Data

[
  {
    "event_id": "evt_001",
    "event_name": "storage.usage",
    "external_customer_id": "customer_123",
    "timestamp": "2024-01-15T07:30:00Z",
    "properties": {
      "gb_used": 8
    }
  },
  {
    "event_id": "evt_002",
    "event_name": "storage.usage",
    "external_customer_id": "customer_123",
    "timestamp": "2024-01-15T07:45:00Z",
    "properties": {
      "gb_used": 4
    }
  },
  {
    "event_id": "evt_003",
    "event_name": "storage.usage",
    "external_customer_id": "customer_123",
    "timestamp": "2024-01-15T08:15:00Z",
    "properties": {
      "gb_used": 10
    }
  },
  {
    "event_id": "evt_004",
    "event_name": "storage.usage",
    "external_customer_id": "customer_123",
    "timestamp": "2024-01-15T08:30:00Z",
    "properties": {
      "gb_used": 5
    }
  },
  {
    "event_id": "evt_005",
    "event_name": "storage.usage",
    "external_customer_id": "customer_123",
    "timestamp": "2024-01-15T08:45:00Z",
    "properties": {
      "gb_used": 9
    }
  }
]

​
Bucketed MAX Formula

total_result = MAX(bucket_1) + MAX(bucket_2) + ... + MAX(bucket_n)
Where each bucket represents a time window defined by bucket_size.

​
Calculation Process

Hour 1 (7:00-8:00 UTC):
  • Events: 8 GB, 4 GB
  • Bucket Maximum: 8 GB
Hour 2 (8:00-9:00 UTC):
  • Events: 10 GB, 5 GB, 9 GB
  • Bucket Maximum: 10 GB
Total Bucketed MAX: 8 GB + 10 GB = 18 GB

​
Tiered Billing Calculation

Billing Calculation for 18 GB total:
  • First 5 GB: 0 Rs
  • Next 5 GB (5-10): 5 × 2 = 10 Rs
  • Remaining 8 GB (10-18): 8 × 3 = 24 Rs
  • Total: 34 Rs

​
Bucketed MAX with group_by Example

Group By is only available with bucketed MAX. When set, within each time bucket events are grouped by the chosen property; MAX is computed per group in that bucket, then those group maximums are summed. The final result is the sum of these per-bucket totals. Useful for per-resource or per-entity peak billing within time windows.

​
Configuration

  • Aggregation Field: data
  • Bucket Size: HOUR (required for group_by to apply)
  • Group By: resource_id (single property name; must exist on event properties)

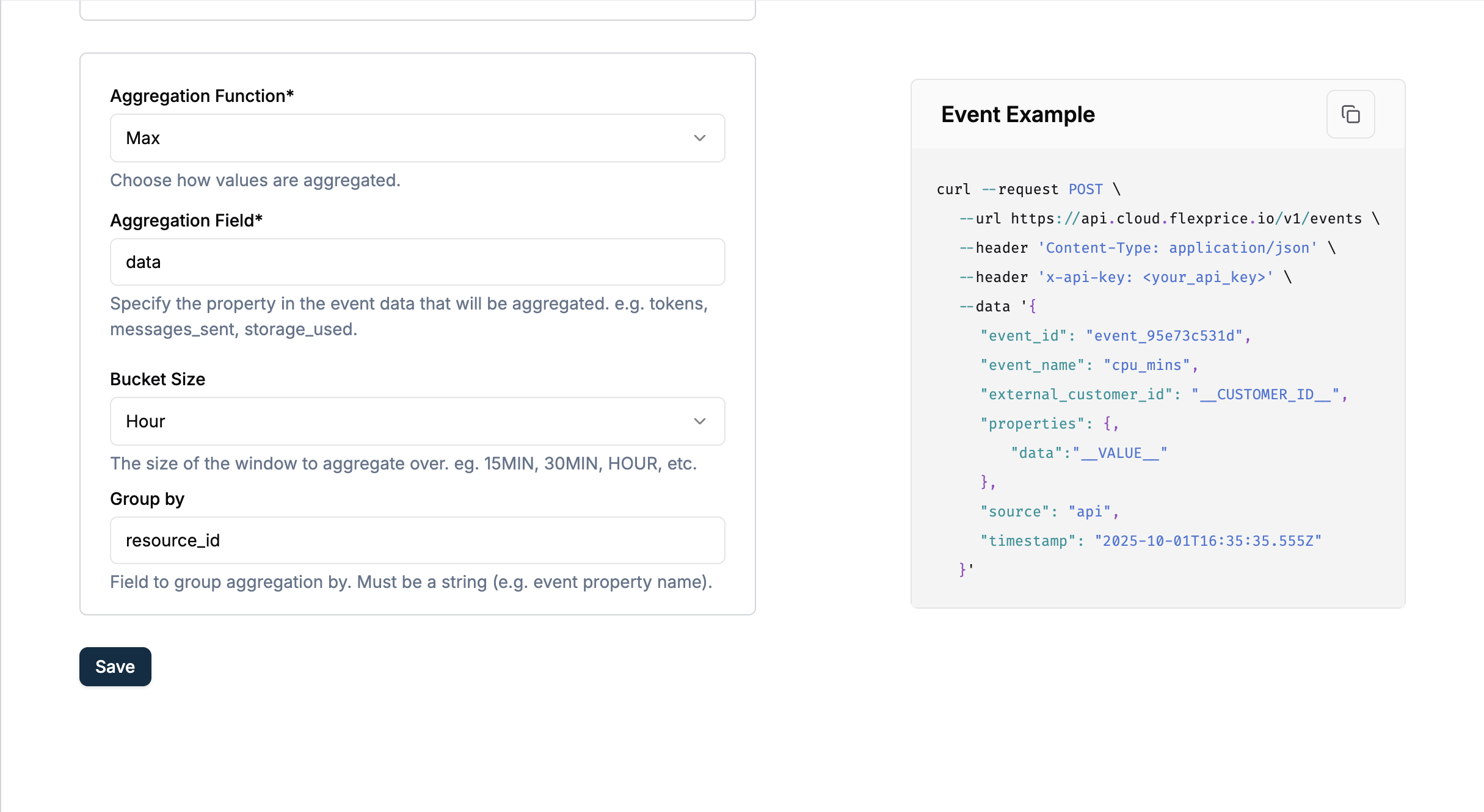

MAX feature with Bucket Size and Group By configured
Screenshot: Metered feature with Aggregation Function = Max, Aggregation Field = data, Bucket Size = HOUR, and Group By = resource_id.

​
Event Data

[
  {
    "event_id": "evt_A",
    "event_name": "resource.usage",
    "external_customer_id": "customer_123",
    "timestamp": "2024-01-15T10:00:00Z",
    "properties": {
      "data": 10,
      "resource_id": "resource_a"
    }
  },
  {
    "event_id": "evt_B",
    "event_name": "resource.usage",
    "external_customer_id": "customer_123",
    "timestamp": "2024-01-15T10:30:00Z",
    "properties": {
      "data": 20,
      "resource_id": "resource_b"
    }
  },
  {
    "event_id": "evt_C",
    "event_name": "resource.usage",
    "external_customer_id": "customer_123",
    "timestamp": "2024-01-15T11:15:00Z",
    "properties": {
      "data": 15,
      "resource_id": "resource_a"
    }
  }
]

​
Bucketed MAX with group_by Formula

total_result = sum over buckets of ( MAX(group_1 in bucket) + MAX(group_2 in bucket) + ... + MAX(group_n in bucket) )
Within each time bucket, events are grouped by the group_by property; each group’s maximum is taken, then summed. Those per-bucket sums are then added together.

​
Calculation Process

Hour 1 (10:00–11:00 UTC):
  • resource_a: 10 → MAX = 10
  • resource_b: 20 → MAX = 20
  • Bucket 1 total: 10 + 20 = 30
Hour 2 (11:00–12:00 UTC):
  • resource_a: 15 → MAX = 15
  • Bucket 2 total: 15
Total (Bucketed MAX with group_by): 30 + 15 = 45 Without group_by, bucketed MAX would give 20 + 15 = 35 (max per hour). With group_by: "resource_id", within each hour we sum the max per resource, then sum across hours: 45.

​
Use Cases

​
Standard MAX Use Cases

​
Peak Concurrent Users

Perfect for: Maximum simultaneous users, peak connections
{
  "event_name": "concurrent.users",
  "external_customer_id": "acme_corp",
  "properties": {
    "active_users": 150
  }
}

​
Peak Resource Usage

Perfect for: Maximum CPU, peak memory, highest bandwidth
{
  "event_name": "resource.peak",
  "external_customer_id": "user_456",
  "properties": {
    "cpu_percent": 85
  }
}

​
Bucketed MAX Use Cases

​
Cumulative Peak Billing

Perfect for: Pay-per-peak hour models, capacity-based pricing
{
  "event_name": "capacity.usage",
  "external_customer_id": "merchant_789",
  "properties": {
    "gb_capacity": 50
  }
}

​
Infrastructure Peak Tracking

Perfect for: Peak detection across time windows for billing
{
  "event_name": "server.load",
  "external_customer_id": "customer_101",
  "properties": {
    "peak_instances": 12
  }
}

​
Bucketed MAX with group_by Use Cases

Requires Bucket Size to be set; group_by is only applied with bucketed MAX.

​
Per-Resource or Per-Entity Peak Billing

Perfect for: Billing on the sum of peak usage per resource within each time window (e.g. per resource ID, per project ID, per region)
{
  "event_name": "resource.usage",
  "external_customer_id": "customer_123",
  "properties": {
    "data": 50,
    "resource_id": "res_abc"
  }
}

​
Multi-Tenant or Multi-Project Peak

Perfect for: Sum of each tenant’s or project’s maximum usage
{
  "event_name": "capacity.usage",
  "external_customer_id": "platform_customer",
  "properties": {
    "gb_used": 100,
    "project_id": "proj_xyz"
  }
}

​
When to Use Each Mode

✅ Use Standard MAX when:
  • Need simple peak detection
  • Billing based on overall maximum
  • Single highest value matters
✅ Use Bucketed MAX when:
  • Cumulative peak billing models
  • Time-series peak analysis
  • Tiered capacity pricing
  • Sum of peaks across time windows
✅ Use Bucketed MAX with group_by when:
  • You already use bucketed MAX (Bucket Size is set) and want per-resource or per-entity breakdown
  • Billing per resource, per project, or per entity within each time bucket
  • group_by is a single property name string on your events
  • Note: group_by is only applied when bucket_size is set

​
Key Differences

AspectStandard MAXBucketed MAXBucketed MAX + group_by
ConfigurationNo bucket_sizeRequires bucket_sizeRequires bucket_size + group_by (single field)
CalculationSingle maximum valueSum of bucket maximumsPer bucket: sum of group maximums; then sum across buckets
Use CaseOverall peak detectionCumulative peak billingPer-resource / per-entity peak within time windows
ResultSimple max valueSum of time-window peaksSum of (per-bucket sum of each group’s max)

​
⚠️ Critical Notes

  • bucket_size can ONLY be used with MAX aggregation - No other aggregation supports this
  • Bucketed MAX sums the maximums - Does NOT return max of maximums
  • group_by is only applied with bucketed MAX - You must set Bucket Size for group_by to take effect. Within each time bucket, events are grouped by the group_by property; MAX is computed per group, then those group maximums are summed (per bucket), and bucket results are summed

​
